Using SpatialAnalyzer with an API Radian to Calibrate a Large-Scale Train Dumper System



When cargo is heavy and durable, the most efficient way to unload it is to simply dump it. Train dumper systems are used to unload a variety of heavy raw materials for a range of industries, including coal.  Dumping 300 tons of coal might look simple, but the process actually requires a great deal of precision.  It is essential that the rail car stays in place when it is flipped over to dump the coal and is then returned to its original position on the track.





Recently, the Qingdao Sifang Rolling Stock Research Institute, a Chinese rail service provider, adopted a new method to measure and calibrate a large scale dumper system manufactured by the Dalian Heavy Group.  To complete the measurement and analysis, the Institute relied on SpatialAnalyzer (SA) software with an API Radian Laser Tracker and Active Target.





Train Dumping in Three Simple Steps
Dumping train cargo can be accomplished with virtually any train car as long as hydraulic fixtures can be adhered to the carriage.  The process follows these three steps:



Measuring and Calibrating

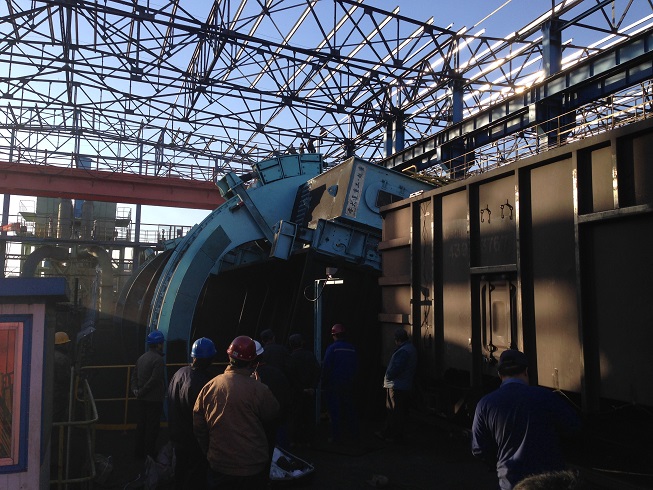

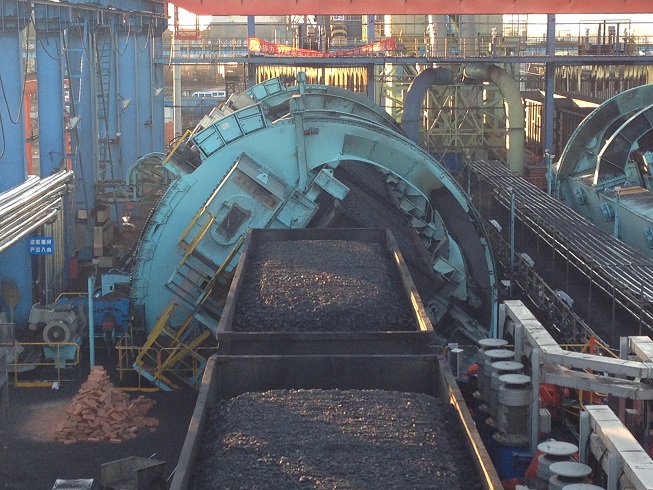

The Dalian rotary dumper system can upload three carriages at one time, totaling 300 tons of coal.  Including the weight of the train cars, the dumper will bear nearly 400 tons.  As the carriages unload, the moving track of the rotary dumper will almost instantly feel 75% less weight pressing down on it.  This drastic change in weight leads to an increased risk of the following:



To prevent these potential problems, it is essential that rotary dumper systems control the movement of the tracks as much as possible to reduce the risk of damage to the rail cars, the connecting bearings between the cars, and the tracks.





Prior to adopting the SA and API Radian solution, calibration of the dumper system was accomplished by fixing tension meters on every position of the carriages in order to obtain the adjustment value.  This method; however, proved to be unreliable and inefficient.  A more accurate method was needed; one that could also withstand humidity variations, winter weather conditions (which is often below freezing), and constant coal dust in the air.





The Solution

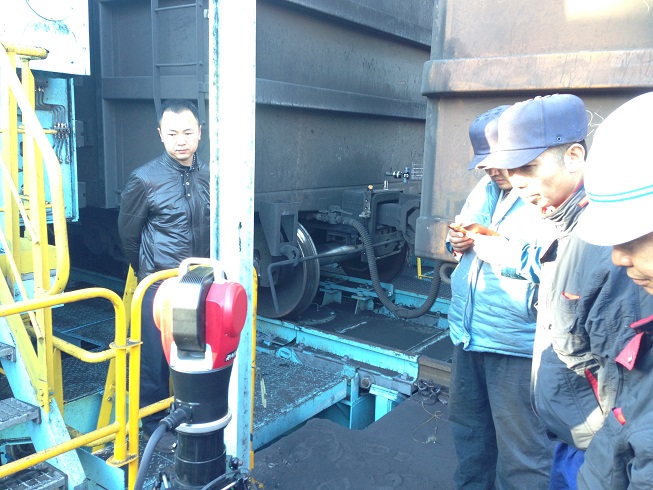

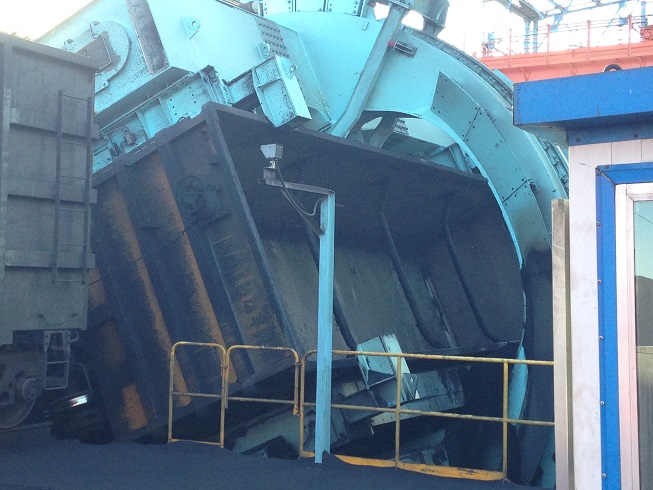

To measure the movement of the dumper’s track, Sifang engineers now use an API Radian with an Active Target attached to the dumper.  While the tracker captures the movement of the track in real time, SA displays the motion of the dumper and the amount of displacement throughout the process.  SA also allows the engineers to analyze the data in SA software to figure out the value of adjustment.  Attaining the correction value allows the engineers to appropriately adjust the gear mechanism under the dumper to reduce movement.

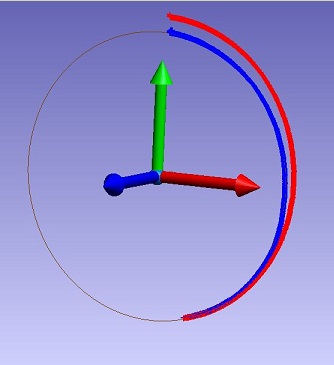

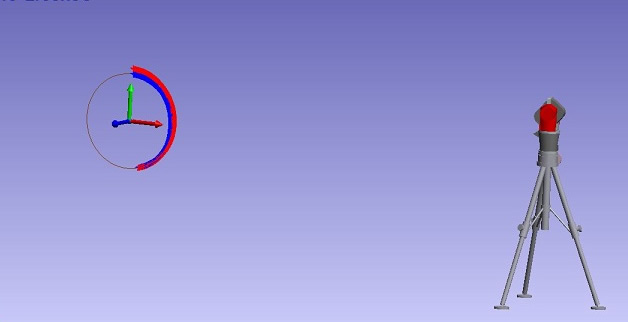

In SA, the engineers are able to easily view the dumper’s track movements.  SA shows a blue line to represent the moving track’s position when the train carriage is full of coal, and a red line to show where it moves once the carriage is empty. By comparing the two sets of data in SA, the engineers can easily obtain the adjustment value and then adjust the dumper’s gear mechanism.  Each scan takes one to two minutes, and they typically scan each dumper system on a weekly basis.  This process is performed at multiple sites and has proved effective at preventing damage to the dumper system and the rail cars.



About the Sifang Institute
Qingdao Sifang Rolling Stock Research Institute (Sifang Institute) is a part of the CNR (China North Railway) Group.  Sifang Institute focuses on technology research to provide professional specialized train measurement and calibration services in order to fulfill standards and requirements.  It is qualified as a service provider for train dumper measurement, calibration, and acceptance.  It is also a standard composer for the “National Standard for Train Dumper Measurement and Calibration.”
